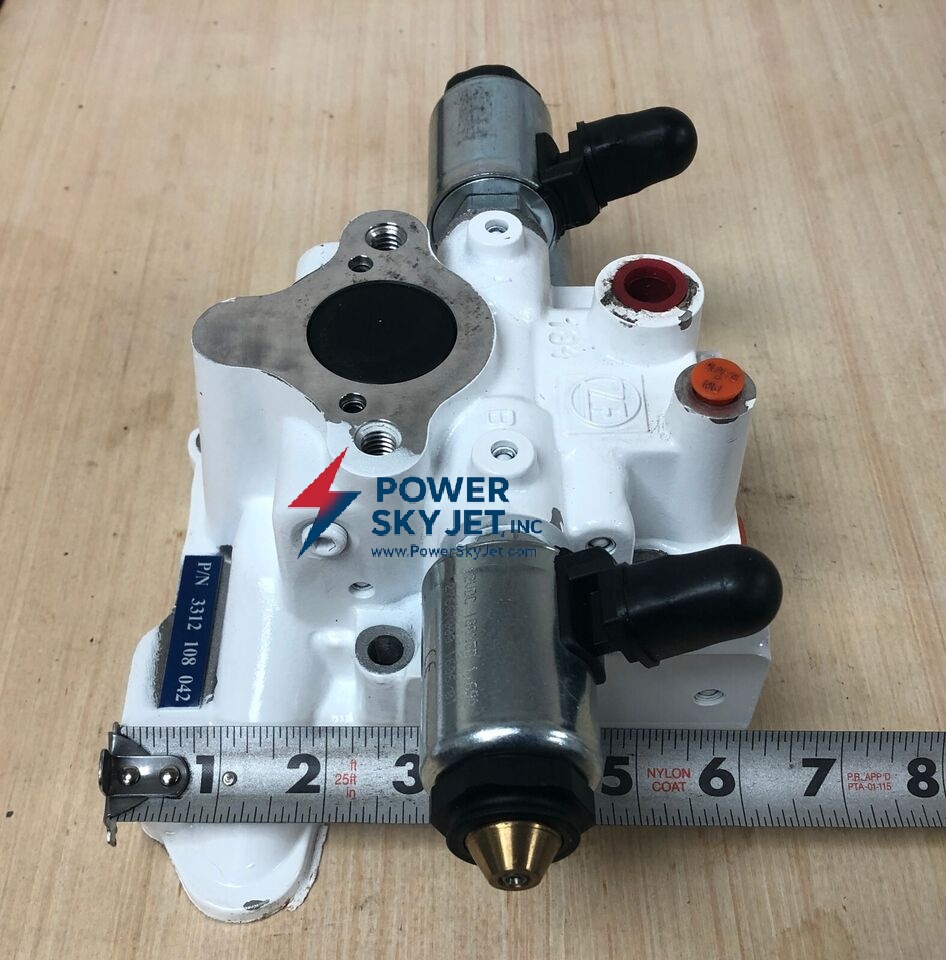

ZF Marine 3312108042 Electric Control Block

This is a ZF V-Drive "pass through" gearbox. Items included: Bell Housing SAE #2 (part #3312416001), Centa Marine Damper Plate (part #:D-42755 CF-R-120/130/134/136) and 12V Electric Drive Control Unit (part #:3312108042). Gearbox brackets not included. Please note that gear ratio (A) 2.01:1 is the forward position and gear ratio (B) 2.00:1 is for the reverse position.

Brand: ZF Marine

Gearbox Model Number: ZF 85 IV

Replaces: ZF 80 IV & Hurth HSW800V

Gear Ratio (A) & (B): (A) 2.01:1 & (B) 2.00:1

Type: V-Drive, 12? Down Angle Gearbox

Bell Housing: SAE 2 (part #3312416001)

Damper Plate: Centa Marine Damper (part #:D-42755 CF-R-120/130/134/136)

Drive Control Unit: 12V Electric Drive Control Block (ZF #3312108042)

Dimensions LXWXH & Weight: 32"X32"X30" & 200 LBS

Manufacturer Part Number: 3323003003

Input Power Capacity: 493HP / 368kW @ 3800 RPM
