Yamaha 4 Stroke 250 HP 25 Shaft Casing Gear Case Transmission Sterndrive

Yamaha 02&UP F250 4Stroke 250 HP Lower Unit 25 Shaft Casing Gearcase Transmision

Brand: Sterndrive

Color: All Lower units come with BLACK PRIMER NOW

Condition: New Manufacturer PN: 90422B25F

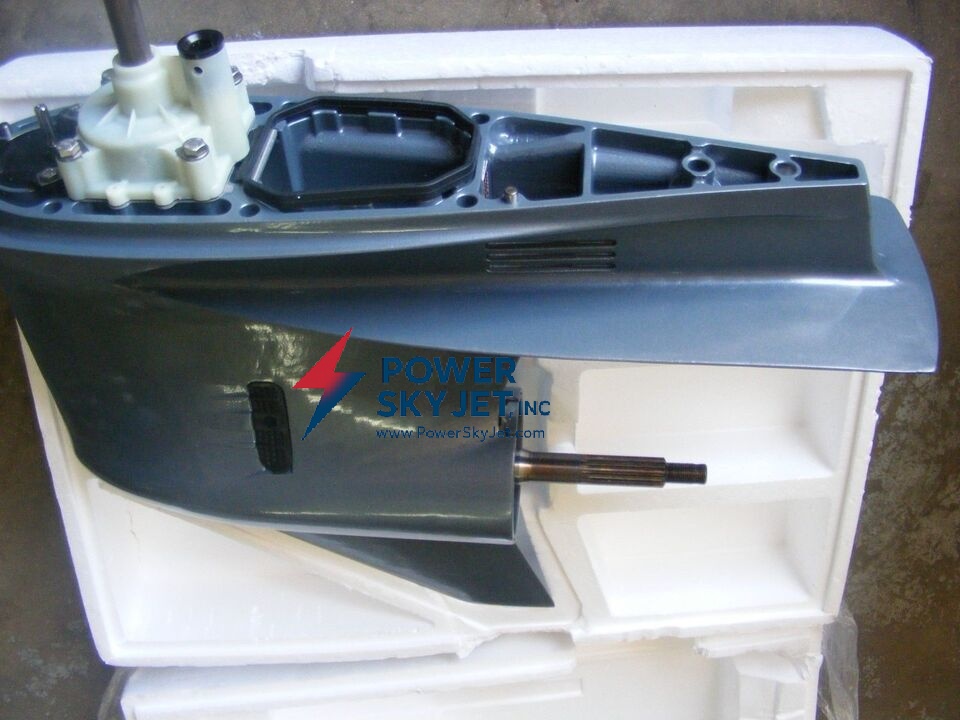

IMPORTANT PICTURE AND LOWER UNIT COLOR NOTE:

The pictures shows lower unit painted Yamaha color. Manufacturing process was changed. The Yamaha lower unit will NOT come anylonger painted with Yamaha Silver/Gray top coat.

Yamaha lower unit now come with BLACK PRIMER ONLY.

You can paint it to match your engine

DESCRIPTION:

- Lower Unit Gearcase.

- COMPLETE and assembled lower unit with Shaft, gears, and water pump.

- Add oil and bolt it on.

FEATURES:

- DUAL Water pick up

- This unit has the watercooled bearing carrier.

- Fits 25" midsections.

- 15 spline propeller shaft for 15 spline propellers.

- Shaft Height: 27.5" from top of the drive shaft to the mounting surface (top of housing)

- Box measurements: 51"x29"x9" and weights 58 lbs.

APPLICATION:

- Replaces F250 lower units with dual water intakes.

- Also replaces early F250 lower units with side water intakes.
